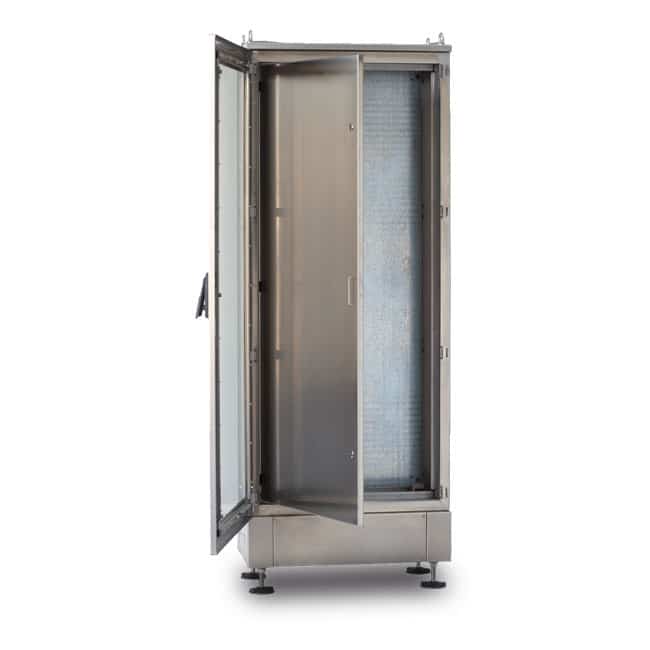

Made of AISI 304L (Wnr 1.4307) and designed for 19” rack instrument applications inside EGO and SPEED cabinets with a width of 800 mm. The axis of rotation is located approximately one-third of the width (on the hinge side) and allows for deep instruments up to 475 mm. In the H=1800 mm cabinet, the capacity of the 19” rotating rack frame is 35 HE units and 40 HE units in the H=2000 mm cabinet. The distance from the outside of the frame to the inside of the door is 70 mm. Factory assembly of the 19” rotating rack frame and the use of the bayonet cable entry flange system with rubber cable glands art. SAC001/80__S is recommended instead of the standard cable entry flange.
